New 100A square d qo 12 space w/ main QO112-20M100C

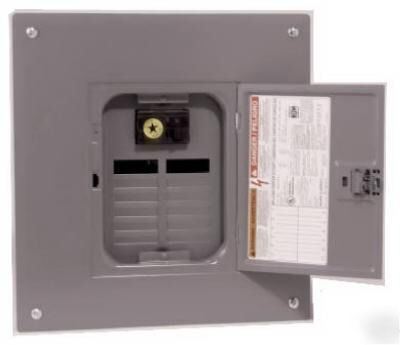

This is a new Square D 30 Amp Interior surface mount 2 space lug load center. Cataog number QO112-20M100C
Single phase, 3 wire, split neutral, 12 spaces, 20 circuits, 8 tandem breakers accepted, 120/240 Volts ac. 22,000 AIR factory installed main breaker U.L. Listed for use ahead of QO and QOT 10,000 AIR branch breakers to permit their application systems with up to 22,000 amps available fault current. QOM1 frame size. 3 mounting locations for ground bar, use bar No. PK15GTA sold separately. Shielded copper bus bar, slot/square drive screws. Straight in main design. Tangential main service knockouts. Rotate entire device 180 degrees for bottom feed. #4 - 1 AWG main wire. Gray baked-on enamel finish. U.L. Listed.
