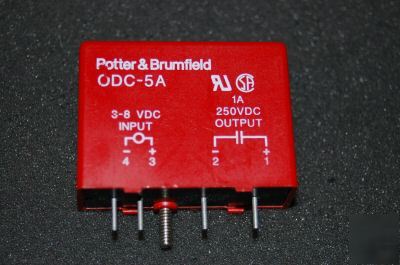

New potter & brumfield relay , i/o module odc-5A
RELAY,I/O MODULE,ODC-5A,5VDC IN,1A,3-250VDC OUT,RED
* Industry standard package and pin-out
* 4,000Vrms optical isolation
* Compatible with 210M series mounting boards
* ODC - DC output module - red case
* Capacitance: 8pF typical (input-output)
* Input or logic voltage: 5VDC
* ODC type: 1A, 3VDC to 250VDC output
* Control voltage range (Vin): 5VDC typical
* Must operate voltage: 3VDC max.
* Must release voltage: 1VDC min.
* Maximum Input current: 18mADC max.
* Input resistance: 250 ohms typical
* Potting compound flammability: UL94V-0
