New retractile cord (extended cable)28AWG*25CONDUCT,4M

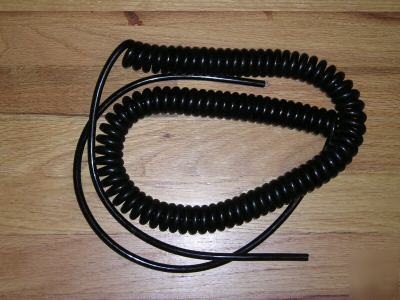

This is brand new CORD, RETRACTILE (Extended Cable)
4 meter (~15Ft) (extended length)
An ideal and affordable replacement solution.
Will match most CNC machines and most industrial applications.
Quantities available, please contact seller for more information.
Product Specifications/Features :
  A1.2 Material Stranded; tinned copper wire.
  A1.3 AWG size & composition 28 AWG(30 strands/0.08mm).
  A1.4 Diameter Nominal 0.6mm.
  A2.1 Material Polypro Pylene.
  A2.2 Nom. Thickness 0.16mm.
  A2.4 Rated Temperature 80º.
  A3.1 Material Manner Overall Alurninum / polyester tape Wrapped,A1.side faced out.
  A4.1 Material Stranded; tinned copper wire.
  A4.2 AWG size & composition 24AWG (7 strands / 0.20mm).
  A4.3 Diameter Nominal 0.60mm.
  A4.4 Note The drain wire is laid in between Aluminum/polyester shield and braid.
A5.Electrical & physical Properties
  A5.1 Conductor resistance: AT 20º 237 OHMS/KM MAX.
  A5.2 Insulation resistance: AT 20º 100M OHMS/KM MIN.
  A5.3 Dielectric strength: AC-500V/1 MIN.
  A5.4 Spark test: 2KV IN AIR.
  A6.1 Material TPU (TEMPERATURE RATING-40º)
  A6.3 Overall diameter 7.0mm
Quantities available, please contact seller for more information.
