Nice bodine electric company dc motor control model#850

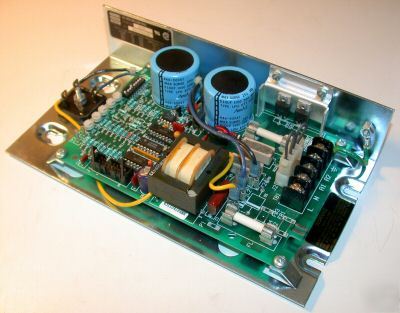

NICE BODINE ELECTRIC COMPANY DC MOTOR CONTROL MODEL#850
* Operates off 115 Volt AC line.
* Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
* Dip switches to easily calibrate control for different motor sizes.
* Line voltage and temperature compensation minimize speed drift.

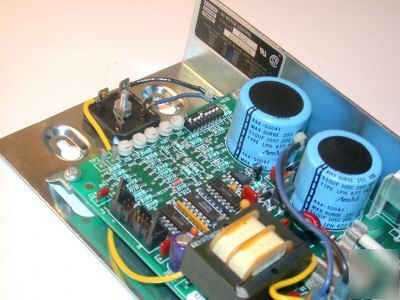

* Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation.
* 10k ohm remote speed pot and 24" connecting wire supplied with each control.
* Connections for optional user-supplied inhibit switch.

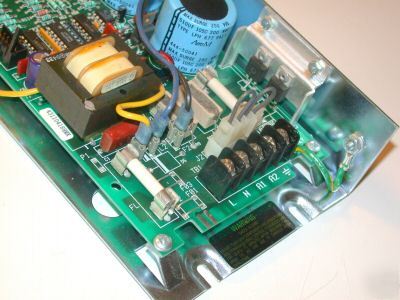

* Terminal block for quick line and motor connection.
* Plug-in connector for speed pot and optional usersupplied inhibit switch.
* Flexibility in adding plug-in interface boards. See optional accessories.
* Built-in line and motor fuseholders (both fuses supplied).
* Rated for continuous operation in 50° C ambient with no additional heat sink.
* Designed to be mounted in separate enclosure supplied by user.
* Drives Bodine 130 Volt permanent magnet DC motors.
* Drives 90 Volt "SCR duty" and 130 Volt "PWM duty" permanent magnet DC motors made by other manufacturers.
* Category: Filtered SCR DC Chassis, Basic Speed Control FPM
* Input Voltage (VAC 50/60 Hz): 115
* Output Voltage (VDC): 0-130
* Continuous Output Current (Amps): 2.3
* Peak Output Current (Amps): 4.6
I will fully guarantee this item.
