> 13.56MHZ ISO14443A rfid usb reader/writer + s/w + tags
13.56MHZ ISO14443A rfid usb reader/writer + s/w + tags
13.56Mhz USB RFID Reader/Writer
for Mifare ISO14443A MF1 S50 & S70
Power from USB , No Need External power adaptor
* Support Mifare MF1 S50 & S70 ISO/IEC 14443A RF interface
* Operation frequency : 13.56Mhz
* Built-in transceiver antenna;
* Maximum effective distance up to 5cm (ISO card )
* Less than 100ms decoding time;
* power from USB , No need external power adaptor
* Built-in bi-color LED and buzzer
* 1K byte EEprom memory , orgamized in 16 sector with 4 blocks of 16 bytes each (one block consists of 16 byte)
* User definable access conditions & password for each memory block
* Data retention of 10 years
* Write endurance 100,000 cycle
Data format : Baud Rate: 9600, N, 8, 1
* STX' (02 HEX ) – start character
* CR – enter & Line feed character
* ETX (03 HEX) – end character

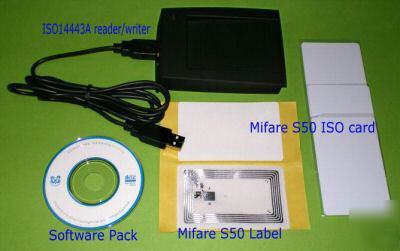

Full set includes (as photo) :
* Mifare RFID reader / writer – 1 pc
* Mifare MF1 S50 ISO card x 3 pcs
* Mifare MF1 S50 label x 2 pcs
* software pack in CD x 1 (free download here)
* Demo program show how to read & write the data into the tag
* demo program's source code (built by Delphi) - speed up software development time
* API implementation as a DLL for Visual C++ under Windows XP
* communication protocol for non-PC application
We are a manufacturers of RFID readers, modules, systems and tag in Hong Kong.
We has offered the industrial market quality products on the leading edge of technology ,
complete line of RFID products since 2000.
We designs and manufactures the most available 125 khz ,13.56 MHz,900 MHz long range RFID technology.
With strong demand for increasing in product quality as well as we can offer secure and reliable and low cost operations.
