2 eagle signal timer cycl-flex 150 minute in case
E.W. Bliss Company- Eagle Signal
115 VAC with relays for turning items on and off

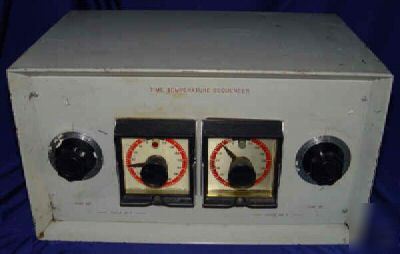

The unit is labeled, "TIME TEMPERATURE SEQUENCER"
I assume this ran a test for up to 150 minutes and then ran another test for up to 150 minutes.
When powered on timer one works, but when it shuts off timer two does not kick in. It must need the output cable connected. I manually tested both timers by jumpering the appropriate terminals. The 115 VAC is applied through the broken connector shown in the picture below. Your application would require replacing the connector.
The left timer is wired so that when it reaches its time-out, it turns off. There is also a small relay inside to control ...?
The knobs are connected to pots and are labeled TEMP SET
Case Dimensions: 17" W x 11" D x 9 1/2" H
Broken connector with bent pins.
Tested and Working. To do this:
I applied AC to terminals 1 and two.
Stock picture of another timer I am selling with the same schematic
