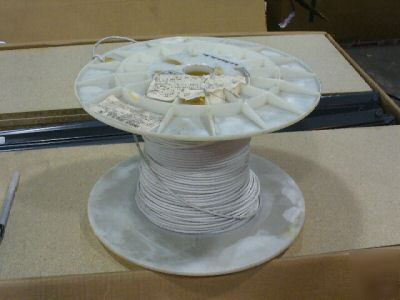

Cable,special purpose,electrical
CONDUCTOR FORM - STRANDED ALL CONDUCTORS
MATERIAL - COPPER CORE CONDUCTOR ALL CONDUCTORS, PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS, COPPER 2ND POSITION SHIELD BRAID, METALLIC CABLE, PLASTIC POLYTETRAFLUOROETHYLENE 3RD POSITION JACKET CABLE
MATERIAL DOCUMENT AND CLASSIFICATION - ASTM B298 FED SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS
SURFACE TREATMENT - SILVER CORE CONDUCTOR ALL CONDUCTORS, SILVER 2ND POSITION SHIELD BRAID, METALLIC CABLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE - 22 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR - 19 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR - 34 ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY - 1 TRIPLES
COLOR - WHITE 1ST POSITION PRIMARY INSULATION FIRST CONDUCTOR, BLACK 1ST POSITION PRIMARY INSULATION SECOND CONDUCTOR, RED 1ST POSITION PRIMARY INSULATION THIRD CONDUCTOR
VOLTAGE RATING - 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS
CROSS-SECTIONAL SHAPE STYLE - 6 ROUND
CROSS SECTION OUTSIDE DIAMETER - 0.219 INCHES NOMINAL
TEMP RATING - -65.0 DEG CELSIUS AND 200.0 DEG CELSIUS
III PRECIOUS MATERIAL - SILVER
III PRECIOUS MATERIAL AND LOCATION - SURFACE ALL CONDUCTORS SILVER AND SURFACE SHIELD BRAID SILVER
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - E22C9-0-2STW
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-55021/2
