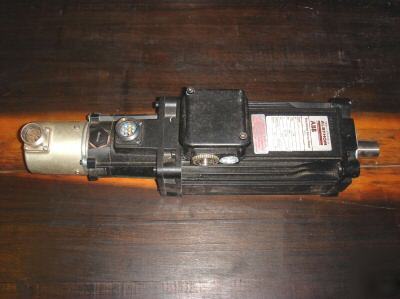

Abb brushless dc servo motor, LC420TL, encoder & brake
The lightweight motor design, with it’s inherent small mechanical time constant, achieves outstanding response time and very fast load acceleration. Motor construction allows efficient heat dissipation, permitting large overloads while allowing full rated torque from stall to maximum speed continuously; making these motors ideal for use in hard, dynamic duty cycle applications preciously outside the capability of electric servo-power.
Without commutator or brushes, these permanent magnet motors are maintenance free – during the working life of your machine. Smooth rotation at low speed is another main feature of the design – essential for positioning applications where accuracy is critical.
With these advantages, this motor is equally suited to production machine drives or high technology equipment. Examples of applications include punch presses, machine tool feed drives, robots, cut to length systems, transfer machines, laser cutting tables, aircraft and rocket actuators, specialized machines for textile, chemical, glass, printing and many more industries.
The motor and encoder originally sold for around $3240, when new. The specifications for the motor and encoder are listed below.
Manufacturer ABB Alstrom / Parvex
Servo Motor Type Brushless DC, Permanent Magnet, Mat Black Paint Finish
Encoder Coupling Type Zero Backlash Helical For 6 mm Shaft
Stall Torque At 40ËšC Ambient 2.5 Nm
Rated Speed At 280 Volts 4300 RPM
Torque Constant At 25ËšC 0.525 Nm/Amp
Thermal / Mech Time Constant 10 mn / 2.15 ms
Shaft Thrust At 3000 RPM Radial 43 daN, Axial 19daN
Suited Typical Servo Amplifier 7.5/15 CMS 2 BTM
Mechanical Design Flange With Clearance (Per IEC 72)
Run-out Concentricity N is Standard
Motor Frame H & W Dimensions 90 x 90mm (Terminal Box: 66 x 66 x 44 H)
Motor Length w/o Encoder 255 mm (Add ≈ 101mm for Encoder Length)
Shaft Diameter x Length Ø19mm J5 x 40mm ± 0.4mm (6mm H9 Key)
Encoder Face Mount Dimensions Ø74mm ± 0.5mm, 4 x Ø7mm On 100mm BC
Encoder Connection 12 Pin Mil Spec Connector
Other Connection Terminal Box (Power And Brake)
Windings Insulation Class F (160ËšC)
Thermal Protection Thermal Contact Normally Closed
Model Number 10-23652-2500 Radial
Power Supply 5 vDC ± 5% (11 to 24 vDC +20% Available)
Shaft Diameter x Length Ø6 mm x 10 mm Stainless Steel
Mounting Flange 3 x M4 On 100mm Bolt Circle, Zinc Body & Hsg
Shaft Loading Axial 156 N, Radial 30 N
Min / Max Operating Temperature -20 °C / 60 °C
