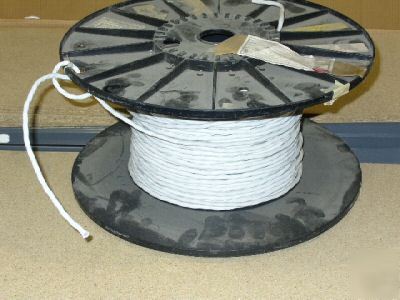

Cable,power,electrical
CONDUCTOR FORM - STRANDED ALL CONDUCTORS
MATERIAL - COPPER ALLOY 101 OR COPPER ALLOY 102 CORE CONDUCTOR ALL CONDUCTORS, PLASTIC ETHYLENE-TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS
MATERIAL DOCUMENT AND CLASSIFICATION - ASTM B33 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS
SURFACE TREATMENT - TIN CORE CONDUCTOR ALL CONDUCTORS
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE - 18 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR - 19 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR - 30 ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY - 3 SINGLES
COLOR - WHITE 1ST POSITION JACKET CABLE, WHITE 1ST POSITION COVER ALL CONDUCTORS
TRACER COLOR - BLUE FIRST TRACER SECOND CONDUCTOR, ORANGE FIRST TRACER THIRD CONDUCTOR
VOLTAGE RATING - 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS
CROSS-SECTIONAL SHAPE STYLE - 6 ROUND
TEMP RATING - 150.0 DEG CELSIUS
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-27500
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M27500-18TE3T14
