Hitex’s in-circuit emulator DPROBE167/DTRACER167-64K/dm

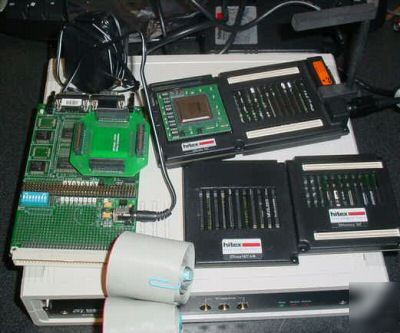

Hitex’s In-Circuit Emulator DProbe167/DTracer167-64k/DMemory 167 w/ST10 Bondout
Support of maximum speed range and all operating voltages
Zero wait state access to overlay memory
No use of application resources
Plug and play: no jumpers, no switches
Support for all popular compilers like Keil, Tasking and Gnu
Mobile debugging: single board emulator, optional PCMCIA card interface
Dual-ported memory module available
Efficient internal & external bus cycle trace system module with complex trigger events and 48 bit time stamps
Fully transparent, non-intrusive debugging:
Selectable peripheral behaviour in halted mode
Visibility of internals like PEC transfers
DPROBE167: All derivatives of Infineon C167 / C167CR / C167CS / C165 / C161xx / C164xx / C163
DPROBEST10: SGS Thomson ST10R167 / ST10R165 / ST10F163 and ST10F167, ST10F168, ST10R272
Dprobe 167 supports 2.7 up to 5.5 Volts operation voltages
With zero wait states up to the microcontroller’s maximum clock frequency
Full support of all C167 specific peripherals. Support of all derivatives via 2-chip emulation (using X-PER module)
Optional high speed dual port overlay memory
Up to 512 kB emulated ROM for on chip ROM/flash
8 execution breakpoints: break before execution
Isolation mode: used for adaptation test
Phantom mode: virtually disconnects the emulator
144 trace channels, 64 ksamples, 128/256/512 kB optional
Time stamp resolution: 10 ns resolution
2 bus events, configurable as single events
ORed events or sequential events
Internal clock generator for different frequencies up to 100 MHz (100 kHz steps)
HiTOP98, uVISION2, CrossView or pls fastview66
Support of compilers from Tasking, Keil, HighTec
Fast download via high speed interface, optional PC-Card (PCMCIA), LPT port interface
Adaptation via Quad Connector System to all existing Hitex adapters and chip packages.
Compatible with Hitex PressOn technology
Real Time Operating Support For:
THIS ITEM IS AS DESCRIBED AND TO THE BEST OF MY KNOWLEDGE.
California residents - please add sales tax.
