Crouzet private label analog devices IDC5 i/o mod

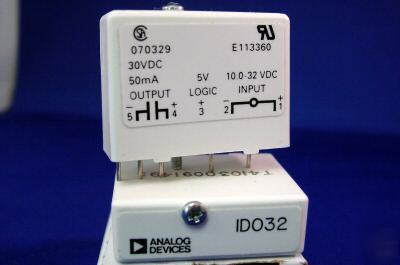

These are Crouzet ID5 I/O modules that were "private labeled" for Analog Devices. They are marked with an Analog Devices label and part number, but were built by Crouzet. They meet the fllowing specifications.
If you are looking for great deals on electro-mechanical devices, take a moment and browse our other items!
Nominal Voltage 120 VAC 240 VAC 5-28 VDC 5-28 VDC 12-48 VDC
Maximum Voltage 140 VAC/VDC 280 VAC/VDC 32 VDC/VAC 32 VDC 48 VDC/VAC
Minimum Voltage 90 VAC/VDC 180 VAC/VDC 3.3 VDC/VAC 4.0 VDC 10 VDC/VAC
Resistance (2) (3) 28 k_ 75 k_ 1 k_ 500 _ 2.7 k_
Maximum Current (4) 6 mArms 5 mArms 34 mA 68 mA 34 mA
Drop-out Current (5) 2.0 mArms 1.5 mArms 1.0 mA 1.0 mA 1.0 mA
Allowable Current/ 2.5 mArms 2.0 mArms 1.5 mA 1.5 mA 1.5 mA
Voltage for No Output (6) 50 VAC/VDC 50 VAC/VDC 2.0 VDC 2.0 VDC 4.0 VDC
Nominal Logic Supply Voltage 5.0 24.0 VDC
Maximum Logic Supply Voltage 6.0 30.0 VDC
Minimum Logic Supply Voltage 3.0 20.0 VDC
Maximum Logic Supply Current (7) 16.0 16.0 mA
Maximum Logic Supply Leakage Current (8) 10.0 10.0 μA
Maximum Voltage (9) 30.0 30.0 VDC
Maximum Current (10) 50.0 50.0 mA
Maximum Leakage Current (11) 10.0 10.0 μA
Maximum Voltage Drop (12) 0.2 0.2 VDC
