> VCA2618 dual 30MHZ low noise variable gain amplifier (8
VCA2618 dual 30MHZ low noise variable gain amplifier (8
High Gain Adjust Range, Wideband, Voltage-Controlled Amplifier
("A" version indicates the higher grade part)
Burr-Brown / Texas Instruments.
The VCA2618 is a highly integrated, dual receive channel, Variable Gain Amplifier (VGA) with analog gain control.
The VCA2618’s VGA section consists of two parts: the Voltage Controlled Attenuator (VCA) and the Programmable Gain Amplifier (PGA). The gain and gain range of the PGA can be digitally programmed. The combination of these two programmable elements results in a variable gain ranging from 0dB up to a maximum gain as defined by the user through external connections. The single-ended unity gain input buffer provides predictable high input impedance. The output of the VGA can be used in either a single-ended or differential mode to drive high-performance Analog-to-Digital (A/D) converters. A separate power-down pin reduces power consumption.
The VCA2618 also features low crosstalk and outstanding distortion performance. The combination of low noise and gain range programmability make the VCA2618 a versatile building block in a number of applications where noise performance is critical.
* LOW CROSSTALK: 65dB at Max Gain,5MHz
* HIGH-SPEED VARIABLE GAIN ADJUST
* HIGH IMPEDANCE INPUT BUFFER
new parts, in anti-static packaging
US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option.
2-nd item: S&H 75% less than first (or 25% of first)
items 3-5: S&H 80% less than first (or 20% of first)
items 6-10: S&H 90% less than first (or 10% of first)
Be sure to add me to your favorites list!

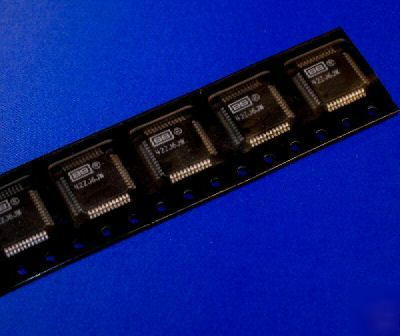

photo may show different part number
