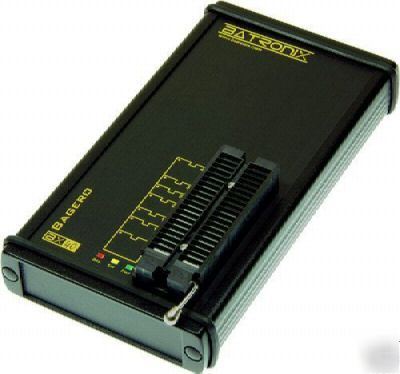

Professional eprom programmer BX40 bagero - usb
Batronix Professional Programmer Series
With the BX32, the BX32P and the BX40, the new Batronix Professional Programmer Series offers an exceptionally flexible, simple to use and extremely fast set of eprom programmer that support a broad range of chips including Eproms, EEproms, Flash, serial EEproms and other storage chips. With a height of only 2.5 cm the enclosures are very practical and are noted for their design and anodized die-cast aluminum construction. These programming devices are your first choice even in a harsh usage environment.
The exceptional flexibility is attained by providing all power requirements via the USB port. A power adapter or batteries are not required, since all programming voltages between 3 and 25 volts are provided internally by a voltage generator from the USB supply voltage. The chips are programmed at a high level of quality and reproducibility in the shortest time possible through the use of optimized algorithms and micro-controller managed programming times. All supported chips can be programmed directly in DIP/DIL packages and suitable adapters are available for specialized packages such as PLCC, SOP, TSOP and QFP.
* Special FeaturesBX32 BatupoBX32P BarlinoBX40 Bagero
* USB PoweredUSB Powered: The device is powered through the USB port and doesn't need a power adapter or batteries.OKOKOK
* Chip Auto IdentificationChip Auto Identification: The programmer identifies chips automatically on their chip signature.OKOKOK
* Multi Programmer ControlFor volume production of chips up to eight BX32, BX32P or BX40 devices can be controlled simultaneously from one PC using the Prog-Express software.OKOKOK
* Automatic Programming StartAutomatic Programmming Start: In production mode, the programmer detects newly inserted chips automatically and can automatically start the programming process. The operator can program chip series without any need to use the PC mouse or keyboard.OKOKOK
* High Speed TechnologyThe newly developed control technology and USB 2.0 / 1.1 compatible full-speed data transfer rates put the BX32 / 32P / 40 among the fastest programming devices currently available.OKOKOK
* Security featuresSecurity features: Device ID-Check, Checksum (Checksum, EPT-1 CRC-16 und CRC-32)OKOKOK
* Multi-Voltage VerificationMulti-Voltage Verification: The chip data can be compared at the nominal voltage and additionally at the minimal and at the maximal chip voltage.OK
* Chip SupportBX32 BatupoBX32P BarlinoBX40 Bagero
* 27' NMOS starting at 2732OKOKOK
* 27C, 27E, 27SF, 28, 28C, 28HC, 28F, 28SF, 29C, 48', 87', ...OKOKOK
* 24', 25', 93', 95' serial EEpromsOKOK
* 28F100/200/400/800 and 29F100/200/400/800OK
* Actually supported chip variants6418
* Complete chip support listBX32 chip listBX32P chip listBX40 chip list
We would like to show you in a video presentation how easy it is to use the Prog-Express software and the Batronix USB programming devices. Within 5 minutes you will learn how to program a chip with the data from a file, copy an existing chip, read a chip and program 20 chips in a volume production.
Prog-Express Video PresentationTime: 5 minutes
Prog-ExpressFor volume production of chips up to eight BX32, BX32P or BX40 devices can be controlled simultaneously from one PC using the Prog-Express software. These eprom programmer are a better alternative to expensive gang-programming devices due to their low cost and extremely high programming speeds, and also offer greater flexibility.
The newly developed control technology and USB 2.0 / 1.1 compatible full-speed data transfer rates put the BX32 / 32P / 40 among the fastest eprom programmer currently available. For example, 27SF256 (erasable 27C256) chips can be programmed in under two seconds and even complex, sequential-based 4MB chips like the AM29F040 can be programmed completely in under ten seconds.
You will find more information about our chip volume production solutions on our website.
All Batronix BX eprom programmer carry a warranty period of 5 years!
* Hardware DetailsBX32 BatupoBX32P BarlinoBX40 Bagero
* InterfaceUSB 2.0 / 1.1 compatible (full speed)
* Socket32 Pin lever socket from ECE32 Pin "High Quality" lever socket from Aries40 Pin "High Quality" lever socket from Aries
* Pin driver Optimized for memory chips
* Low voltage support5V only down to 3Vdown to 3V
* Dimensions9 x 8.5 x 2.5 cm
(3.5"x 3.3"x 1")14 x 8.5 x 2.5 cm
* Weight without accessories / packaging155 gram
* Weight with accessories / packaging349 gram
* Warranty5 Years5 Years5 Years
* Software DetailsBX32, BX32P and BX40
* File formats Binary, Intel Hex, Motorola S-Records, Straight Hex, Tektronix and extended Tektronix files
* File format auto detection OK
* OffsetData and chip offsets
* SplittingComplete 16 and 32 Bit splitting functions
* Serial number generatorVery comfortable serial number generator with support for external serial number files.
* Checksum calculation Checksum, MD5, SHA-1, EPT1 CRC16 and CRC32
* Hex-EditorVery comfortable and feature rich
* Software remote controlProg-Express can be remote controlled by other software with command line parameters and script files
* Software updates~2 weekly, free via download
* Supported operation systemsWindows 98SE, ME, 2000, XP, 2003, Vista
* LanguagesEnglisch, French, German, Italian, Portuguese, Spanish, Turkish
The delivery includes the programmer, USB cable, software and manual on cd.
