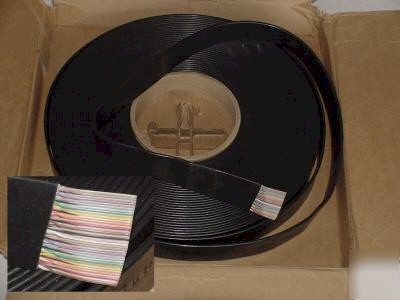

Belden 9V28336 vari-twist flat ribbon cable ~stsi
Belden 9V28336 Vari-Twist Flat Ribbon Cable ~STSI
The shielded jacketed 9V283XX series provides shielding from external electrical interference and allows for greater flexibility, ease of termination, while providing exterior protection from the environment.
Conductor Material TC - Tinned Copper
Insulation Material PVC - Polyvinyl Chloride
Nom. Insulation Wall Thickness .010 in.
Insulation Resistance >10, 000 Megaohms
Substrate Thickness and Material .010" Clear PVC
Overall Nominal Width 1.90 in.
Overall Nominal Thickness Flat Section .127 +/- .012 in.
Overall Nominal Thickness Twisted Section .147 in.
Flat Section Center to Center Spacing 20 +/- .50 in.
Overall Flat Section Length 2 +.5/-.0 in.
Outer Shield Material Trade Name DuofoilBR> Outer Shield Type Tape
Outer Shield Material Aluminum Foil-Polyester Tape-Aluminum Foil
Outer Shield Drain Wire AWG 2-28
Outer Shield Drain Wire Stranding 7x36
Outer Shield Drain Wire Conductor Material TC - Tinned Copper
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Nominal Wall Thickness .038 in.
Operating Temperature Range -20 To +105
UL Rating 105, 300 V RMS, VW-1
