> Butech RC20-da double-acting actuator w/4K103 4WY valve
Butech RC20-da double-acting actuator w/4K103 4WY valve

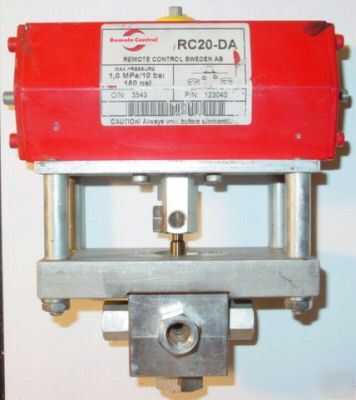

This listing is for a air actuator, with valve.
* Remote Control (Sweden)
* Double-Acting Aluminum Housing
* Max Pressure: 1.0MPa / 10 Bar / 150PSI
* Bu Tech Pressure Systems / Janus
___________________________________________________________________________________

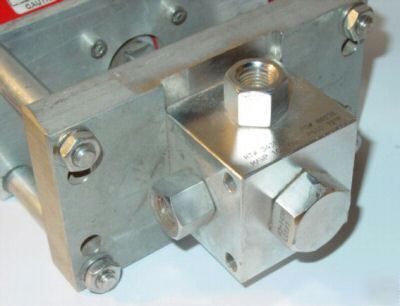

Here is some info on the valve...
BuTech Four-Way Valve for Crossover Service to 10,000 PSI (690 bar)
* Pressures to 6,000 PSI (410 bar) at 72°F (22°C)
* Pressure loaded seats assure positive sealing
* Blowout-proof stem and ball provide maximum safety
* Straight-through flow path minimizes pressure drop
* Quarter-turn operation accommodates quick open-and-close needs
* Flow indicating handle indicates valve position at a glance
* Bi-directional flow capabilities
* Maximum Pressure* 10,000 PSI / 690 bar
* Male or Female / NPT 1/8" - 1/2"
* Single-Ferrule Tube 1/8" - 1/2"
* Male or Female M/P 1/4" - 9/16"
* Male or Female H/P 1/4" - 9/16"
___________________________________________________________________________________
This is used and in good condition. Guaranteed to be in proper, working order.
Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
