Laser module housing : 10.5 mm dia plastic lens on sale

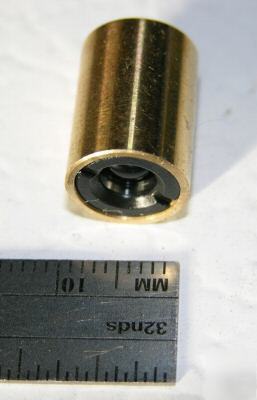

This is a NEW Laser Module Housing
* 10.5 mm diameter X 14.5 mm long.
* Ready for you to install a 5.6 mm diameter diode.
* The same housing utilized in many of our APC Laser Diode Modules.
* Add your diode and driver, or add one of our APC diodes and you are done!
* Brass Housing. Includes high quality plastic aspheric collimating lens
* Typically produces a 1.1 mrad divergent beam.
* Optimized for red wavelengths, but can be used for IR and violet blue diodes too.
* Adjustable if needed, just turn to front ring with a screwdriver, or small tool.
* Glass Lens version (better divergence and heat stability)also available at higher cost- see other listings.
* Please see the data sheet for more details:http:// /html/H-05-P.pdf
Look above, under 'Meet the Seller' to see our other listed items.
We Sell You Tomorrow's Lasers Today..
Made by an ISO 9001 manufactuter, in Taiwan. We were in the company's facility and their clean rooms in late June 2007.We are not a trading company, we speak LASER.
Easy to use, just press fit for diode into the rear. Diode we be flush with rear of housing.
