12VOLT multifunction timer delay relay 12V dc 12VDC xm
Brodersen Multifunction Timer XM D2

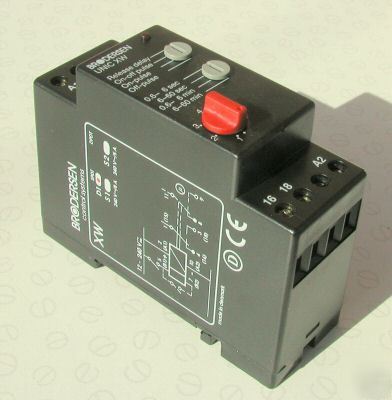

Please note: Timer pictured is XW D1 but the XM differs only in function.
Timing Range [all timers]: 0.6secs to 60mins [recycle functions repeat indefinitely]
Power Requirements: 12..240v ac/dc*
*Timers can be run from mains or a 12V dc circuit. Specifically any voltage between 10.5V to 265V ac or dc [ac voltages at 40-440Hz] Unit automatically powers up from any voltage within this range. No adjustment or special links/connections required!
Output: DPDT [i.e. DOUBLE pole change-over] relay contacts [rated 8A 250vac max] [volt free]
XM D2 Functions: On delay, On pulse, Symmetrical timer with pause or pulse start.
Please consult following Brodersen web-page link below for description of timer functions. Timer headings are links to full pdf specification files:
http://www.brodersen.dk/proinfo/timers/multi/multi.htm
For a timer selection guide with timing diagrams for the specific models use the link below:
http://www.brodersen.dk/products/timers/main/sbc_timer.pdf
* On-delay [Timing period starts when unit is powered relay switches over after timing period has elapsed]
* On-Pulse [Relay switches over when unit is powered and switches back after preset timing period]
* Recycle-pause [Relay switches after preset delay period then repeatedly changes over after each preset period until power is removed]
* Recycle-pulse [Relay switches immediately when unit is powered then repeatedly changes over after each preset period until power is removed]
Timing function and timing range selectable via two screwdriver adjustable rotary switches on face panel. Timing adjustment via finger adjustable red pointer.
Connections via screw-clamp terminals. Clip on rear for din-rail mounting [standard consumer unit din-rail type].
Any questions please ask via my e-mail ****@onetel.com
Safety and Legal considerations [please read before purchase]:
Electrical installation and servicing work should always be carried out by a competent and qualified electrician. The information given above is presented as a description of the item and it's suggested use. It is not in any regard a guide to installing this item. Please refer to the given manufacturers pdf file when making decisions relative to the your intended application.
"WARNING" - Misuse or misapplication of products may cause explosion, electric shock, fire, personal injury, property damage or trauma to hamsters or other small mammals. All of the products we offer are for users having technical expertise. It is important that you analyze all aspects of your application and review the technical information concerning the product or system. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met. etc,etc. Yadda, yadda yadda.
For any other information or advice do not hesitate to contact me.
Please contact me if you require more than one of these PSU's for your project and I can give you a reduced quote.
