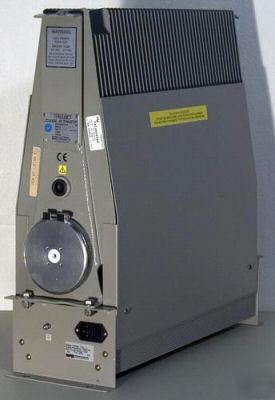

Bird 8329-300 4KW tenuline attenuator w/blower ba-300
Bird Electronics 8329-300 4kW Tenuline RF Coaxial Attenuator with BA-300 Blower, Oil-Cooled with Convection-Cooling.
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Bird-Electronics and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit is in new or like-new condition. There are some scuffed up fins.
List Price is: $2975.00 NEW from Bird (with the Blower)
The Unit's Serial Number Tag Reads:
Watts: 2000 (Into Input) - The blower changes this to 4 kW with the Blower On and 1 kW with the blower turned off.
The Blower's Serial Number Tag Reads:
Model Number: BA-300 (Same as a model BA-300-115)
Power Requirements: 115 V~, 50/60 Hz
Link to the Manual: Bird 8329-300 Tenuline Attenuator Manual
* 2 kW (4kW with blower), Oil-Cooled, LC (F) and N (F)
Ambient Temperature Range: -40°C to +45°C
Connector: LC (F) and N (F) (There is a P/N: 4240-062 - QC Connector, N(F) on Output)
Frequency Range and VSWR: Input 1.1 max. DC to 500 MHz
Coolant: 2.9 gal. (11 liters) silicone oil
Nominal Size: 23 15/16" L x 22 1/16" H x 7 1/8" W (595 x 560 x 181 mm)
Operating Position: Horizontal only
Power Rating: 4000 W continuous with blower on, 1000 W with blower off
For More Pictures Please Click the Following:
* Picture 5 - Input Connector
* Picture 6 - Output Connector
* Picture 7 - Blower Serial Number Tag
* Picture 8 - Blower Power Requirements Tag
* Picture 9 - Calibration Tag
* Picture 10 - dB Value Calibration Tag
* Picture 11 - 8921-300's Serial Number Tag
