Agl hp 83050A microwave system amplifier 2GHZ to 50GHZ
Agilent HP 83050A Microwave System Amplifier, 2 GHz to 50 GHz, including 87421A power supply
The Agilent 83050A microwave system amplifier is a compact, off-the-shelf amplifier designed for systems designers and integrators. This amplifier provides power where you need it to recover system losses and to boost available power in RF and microwave ATE systems. The ultrabroad bandwidth from 2 to 50 GHz allows the designer to replace several narrow bandwidth amplifiers with a single Agilent amplifier, eliminating the need for crossover networks or multiple bias supplies.
* P1dB of more than 15dBm (to 40GHz),13dBm (to 50GHz)
* Noise figure of less than 6dB to 26.5GHz,10 to 50GHz (typ)
* DC Detector output connector: BNC (f)
* +12V at 830mA, -12V at 50mA
* Works with 87421A 25W Power Supply
The Agilent 87421A is a universal input, dc switching power supply designed to provide the bias voltages needed to operate Agilent microwave system amplifiers. These compact power supplies are ideal for integration into a system or for use on a bench top. The two-meter dc bias cable permits the amplifier to be remotely located, allowing it to be placed out of the way or where space is not critical. The Agilent 87421A is a 25 watt, 12V dc power supply designed to power the Agilent 83006A, 83017A, 83018A, 83050A, 83051A, and 87415A microwave system amplifiers. A two-meter cable is included for direct connection to the amplifier.
* Designed specifically for Agilent microwave system amplifiers
* Bias cable permits remote placement
* Compact size for easy system integration
* +12 V at 2.0 A, -12 V at 200 mA
* Output Power: 25 W, maximum
Accessories included: Product Overview for 83000A series, Power cord (US type only)

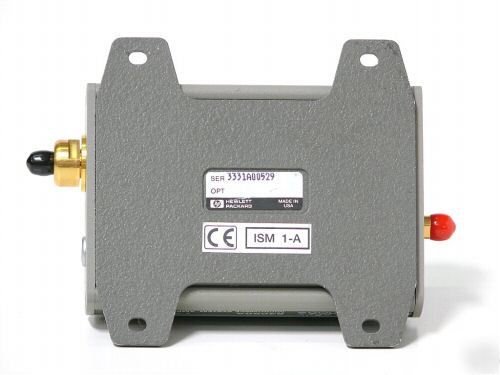

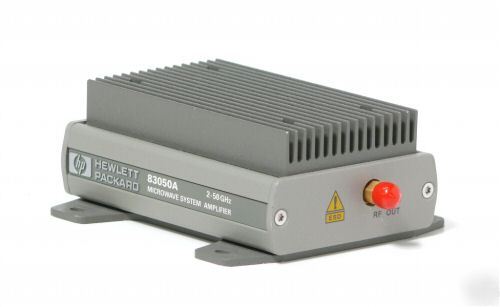

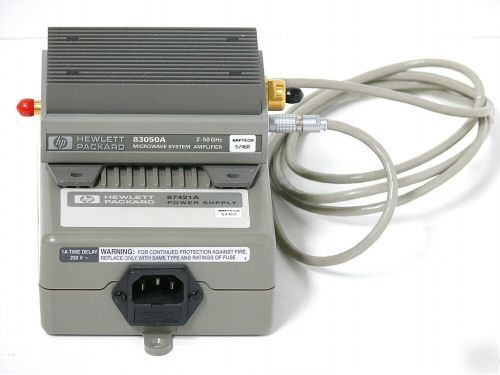

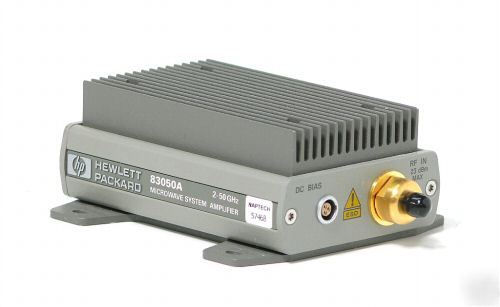

More about the instruments: The amplifier was manufactured in 1993. Serial number: 3331A00529. Power supply was manufactured in 1996. Serial number: 3611A00529. As you can see in the pictures they are in good condition with few signs of wear and tear. Photos on this page are of the actual items offered in this sale.
Guaranteed to be clean and fully operational, with 14-day right of return
