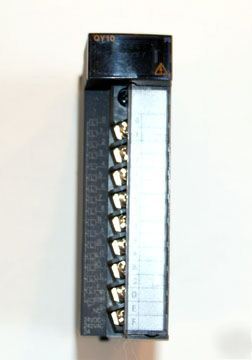

Melsec QY10 24VDC digital output modules 16 point relay
MELSEC Q Series Digital Output Modules
Digital output modules provide the CPU interface for turning devices in your system on & off under program control.
* Relay (contact), sink & source transistor plus triac outputs to handle all common devices
* 16, 32 or 64 outputs per module, depending on module type
* Thermal & short-circuit protection on some modules
* Established A Series connectors (FCN/D-sub type) on 32 & 64 I/O modules for compatibility with existing A Series terminal block (A6TBXY type) installations
If you need to produce varying signal levels of voltage or current, please refer to the analog output modules section.
1ms+0.5 cycle (rated resistive load)
External Supply Voltage/Current
Dimensions (W x H x D) mm (in)
27.4 (1.1) x 98 (3.9) x 90 (3.5)
External Supply Voltage/Current
Dimensions (W x H x D) mm (in)
27.4 (1.1) x 98 (3.9) x 90 (3.5)
1. 40 pin FCN connector. Supplied separately. See "I/O Wiring Connectors" for ordering information
2. 37 pin D-sub connector. Supplied separately. See "I/O Wiring Connectors" for ordering information
