Proxxon 20150 compound table KT150 fits drillstand 2000
Aluminum Die-Cast Compound Table KT 150 Proxxon 20.150
200 x 200mm Machined table with 3 T-slots for fastening machine vices and clamping kits.
Precision milled dovetail slides suitable for metal work.
For routing, milling, slotting of steel, non-ferrous metal, plastic and wood.
Each slide is provided with locking screws & adjustable fittings/gib strips to eliminate play.
Feed adjustments by 2 hand wheels with adjustable, graduated dials (one graduation = 0.05 mm).
Wooden Fence supplied with hardware & pre-drilled positioning holes, including 45°.
Max. travel 150 x 150 mm. Overall height 75 mm.
Weight 10.8 lbs (clamp set in illustration not included).

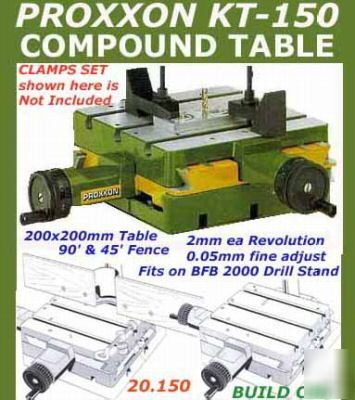

Sketch 1. shows Wooden Fence and Sketch 2. shows attached to Drill Stand.
You can convert this to a stepper motor driven x y table.
This xy table can be fitted on Proxxons Drill/Mill Stand BFB2000 #20.000
Step Clamp Set can be bought check our store for Proxxon #24257
Consists of 2 step blocks and 2 clamps, 2 nuts, 2 T-slot nuts.Secures objects to approx. 35 mm high. Supplied in a wooden box.
