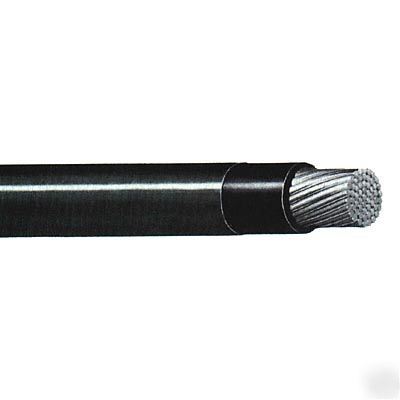

300MCM thhn wire cable cord electrical 300 mcm stranded
SIZE......................................... 300 MCM
STRAND................................... 37
OUTSIDE DIAMETER............... 0.770"
CURRENT (amps)..................... 320
VOLTAGE................................... 600
• Annealed uncoated copper conductor
• PVC insulation, nylon jacket
* General purpose wiring in accordance with the NEC, maximum conductor temperature of 90°C in dry locations and 75°C in wet locations, 600 volts, for installation in conduit or other recognized raceway.
• Also used for wiring of machine tools (stranded), appliances, and control circuits not exceeding 600 volts
• Conforms to Federal Specification J-C-30B
• 250' (76.2 m), 500' (152.4 m), 1000' (304.8 m)
• We also cut to the length you need
STOCK: All of our wire is not guaranteed to be in stock. If it is not in stock, you will be notified when you request a quote.
