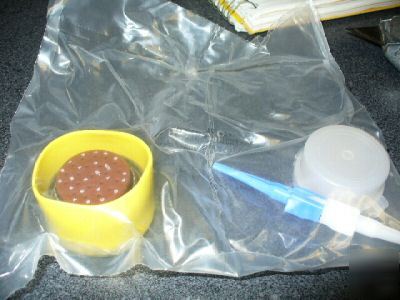

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 0.766 INCHES MAXIMUM
OVERALL DIAMETER - 1.641 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.312 INCHES
NOMINAL THREAD LENGTH - 0.219 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - AXAA 22-21 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 21 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-38999 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-38999 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL - GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT - 0.021 GOLD GRAINS, TROY AND 0.021 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC38999
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS27484T22B21PB
