36 dc/dc 400W bus converters QBK033A0B41 tyco 1/4 brick

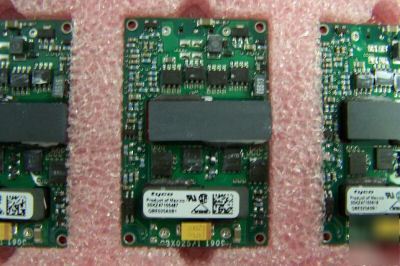

36 DC/DC 400W Bus Converters QBK033A0B41 Tyco 1/4 Brick
The technical specifications for this item are:
* Form factor: Quarter Brick
* Input voltage: 48V (36V - 60V)
* Output voltage: 12V (11.4V - 12.6V)
* Isolation voltage: 1500Vdc.
* Operating temperature range: -40C to 85C.
* Storage temperature range: -55C to 125C.
Features of this Converter are:
* Delivers up to 33A of output current.
* Constant switching frequency (300 kHz).
* High Efficiency: 94.5% at 12V full load.
* Overtemperature protection.
* Industry standard quarter brick package.
* Negative remote On/Off logic.
* Auto restart after fault shutdown.
* Active load sharing (-P suffix).
* Case ground pin (Baseplate version).
* Basic insulation (-B suffix)A
Applications for which this Converter is used include: Distributed Power Architectures; Servers and Storage Applications; Intermediate Bus Voltage Applications; Enterprise Equipment; Wireless Equipment and Access and Optical Network Equipment.
