Corcom 20AYP6C power line filter rfi emi 3-phase 20 amp
* The 3-phase filters are designed for 3-phase, four wire, WYE applications providing filtering in each of the three lines plus the neutral and ground line.
* Both common mode and differential mode suppression from 50 kHz to 30 MHz
* Effective for both balanced and unbalanced three phase loads
* Maximum leakage current, each line-to-ground: @ 120 VAC 60 Hz: 1.4 mA, @ 250 VAC 50 Hz: 3.4 mA
* Hipot rating (one minute): line-to-ground 1500 VAC, neutral-to-ground 1500 VAC, line-to-neutral 1450 VDC
* Operating frequency: 50/60 Hz
* Rated voltage: phase-to-phase: 440 VAC, phase-to-neutral/ground: 250 VAC

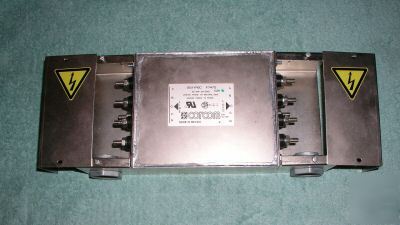

* These include the optional End Bell mounting kit AA406 (Shown with covers removed in the picture)
These came in a lot of spare parts. The terminals are all like new and these are extremely clean.
* The picture shown is the actual item(s) being sold and everything that is included is shown or listed in the ad.
* Unless noted in the ad, I securely package all items and double box any item in OEM packaging.
