Mks baratron pressure vacuum gauge meter readout pdr-c
Type PDR-C-1 PS/DVM Pressure/Vacuum
Power Supply/Readout Controller!
1. Condition: in Good Working and Used Cosmetic Conditions!!!

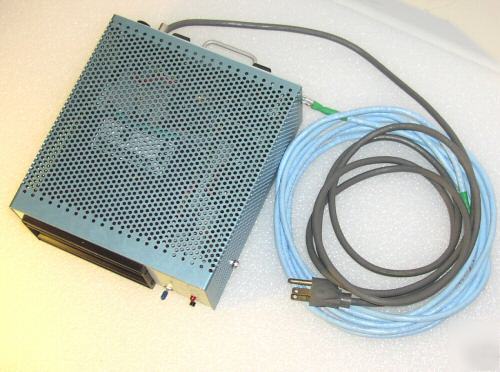

2. Lot Includes: one controller with one AC power cable and one gauge cable, exactly as shown!

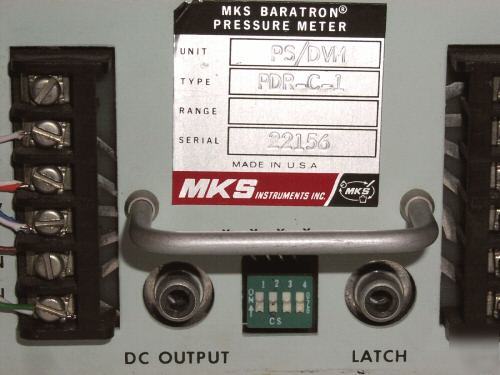

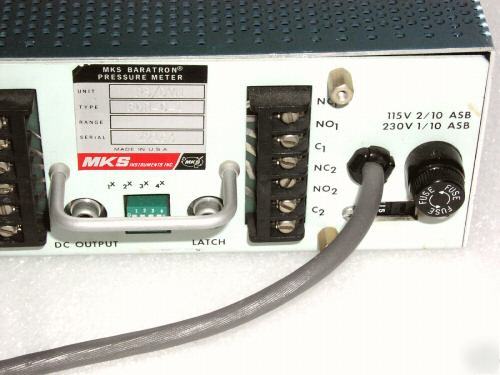

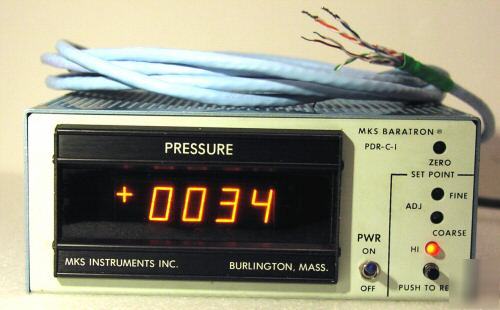

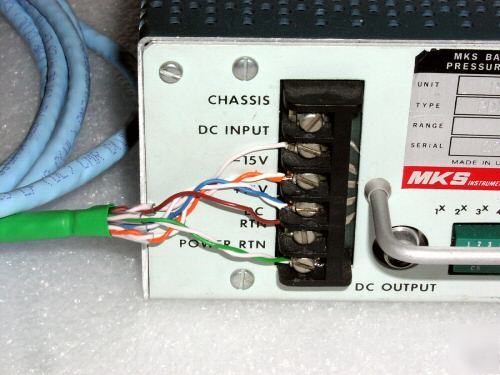

3. Description: this is a nice MKS Instruments Baratron PDR-C-1 type readout controller. This controller is a compact AC powered module designed to provide the power supplying, signal conditioning, range-changing, zeroing, above set-point triggering, and readout capabilities for a capacitance diaphragm absolute pressure/vacuum sensor gauge. The controller will work with the gauges made by such companies as the mks instruments baratron, boc edwards barocell, leybold, ulvac, tylan vacuum general millipore celerity and many others brands. The controller is equipped with a bright 4 1/2 digits fluorescent readout, a zero level potentiometer, two independent set point relay adjustment potentiometers, a power on/off switch on its front panel. On the rear panel there is a range selector switch, an AC in cable, a screw on sensor port/terminal, a relay out port, a signal output port (0-10 VDC). The sensor input port contains two stabilized +15VDC and -15VDC (each is capable of providing up to 180 mA of current) electric power supply lines, and a 0-10VDC (0-5VDC) signal return line. The controller measures: 7 x 3 x 7 1/2", and weights about 6 lb. This controller was manufactured in the United States.

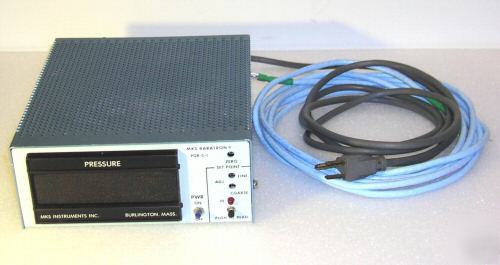

The pictures below represent the actual item!
No local pick-up will be allowed!
Please feel free to ask your questions. We will gladly reply to all emails related to this item.
