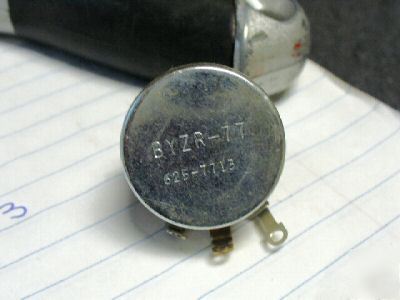

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 20.000 OHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STOP TORQUE - 128.00 INCH-OUNCES
MAXIMUM STARTING TORQUE - 20.00 INCH-OUNCES
MAXIMUM RUNNING TORQUE - 20.00 INCH-OUNCES
POWER DISSIPATION RATING PER SECTION IN WATTS - 2.0 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 40.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 105.0 SINGLE SECTION
BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED
BODY DIAMETER - 1.125 INCHES NOMINAL
BODY LENGTH - 0.594 INCHES NOMINAL
MOUNTING BUSHING LENGTH - 0.375 INCHES NOMINAL
SHAFT DIAMETER - 0.250 INCHES NOMINAL
SHAFT LENGTH - 0.813 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 300.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - STOPS
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 280.0 NOMINAL
NONTURN DEVICE LOCATION - AT 9 OCLOCK
NONTURN DEVICE RADIUS - 0.234 INCHES NOMINAL
MOUNTING METHOD - STANDARD BUSHING
SCREW THREAD SERIES DESIGNATOR - UNEF
SCREW THREAD DIAMETER - 0.250 INCHES NOMINAL
SCREW THREAD QUANTITY PER INCH - 32.0
TERMINAL TYPE AND QUANTITY - 3 TAB, SOLDER LUG
TERMINAL LOCATION - RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 1.403 INCHES NOMINAL
III OVERALL DIAMETER - 1.531 INCHES MAXIMUM
