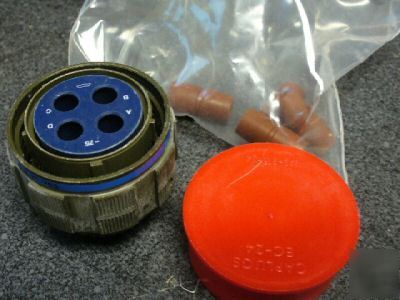

Connector body,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.234 INCHES MAXIMUM
OVERALL DIAMETER - 1.642 INCHES MAXIMUM
THREAD PITCH IN MILLIMETERS - 1.00
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE - BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR - ISO M AND SPECIAL ACME
NOMINAL THREAD SIZE - 31.0 MILLIMETERS AND 1.375 INCHES
THREAD TOLERANCE CLASS - 6G EXTERNAL
THREAD DIRECTION - RIGHT-HAND AND RIGHT-HAND
SHELL MATERIAL - ALUMINUM ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-325 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-571 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - CADMIUM
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
INSERT MATERIAL - PLASTIC EPOXY AND GLASS FIBER SINGLE MATING END
ENVIRONMENTAL PROTECTION - COLD RESISTANT AND HEAT RESISTANT
(NON-CORE DATA) MISSING CONTACT TYPE AND QUANTITY - 4 ROUND SOCKET
