George fischer transmitter,paddlewheel & tee fitting
George Fischer Transmitter,Paddlewheel & Tee Fitting
8550 ProcessPro Flow Transmitter
The Signet 8550 Flow Transmitter is an advanced solution that converts the signal from all Signet flow sensors into a 4 to 20 mA signal for long distance transmission, and offers the unique feature of dual input and output capability. Configuration flexibility is maximized with two optional relays for process control, two packaging options for integral/pipe mount or panel installation, and scalability for virtually any flow range or engineering unit. State-of-the-art electronic design ensures long-term reliability, signal stability, and simple user setup and operation
Features Permanent & resettable totalizers Scaleable outputs Relay options Mounting versatility Simulate function 2 x 16 character dot matrix LCD Chemical resistant enclosure and self-healing window Large pushbuttons Clearly marked terminal labels Applications Flow control and monitoring Filtration or softener regeneration Effluent totalization Pump protection Feed pump pulsing Ratio control Water distribution Leak detection
2536 Rotor-X Paddlewheel Flow Sensors Simple to install with time-honored reliable performance, Model 2536 Rotor-X Paddlewheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The Model 2536 has a process-ready open collector signal and has a wide dynamic flow range of 0.1 to 6 m/s (0.3 to 20 ft/s). The sensor measures liquid flow rates in full pipes and can be used in low pressure systems. The Model 2536 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices including PP, PVDF, and Tefzel make this model highly versatile and chemically compatible with many liquid process solutions. Sensors can be installed in DN15 to DN900 (0.5 to 36 in.) pipes using Signet's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, seat the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap installation
Features Flow rate range 0.1 to 6 m/s (0.3 to 20 ft/s) Wide Turndown Ratio of 66:1 Open-collector output Simple, economical design Highly repeatable output Installs into pipe sizes DN15 to DN900 (0.5 to 36 in.) High resolution and noise immunity 7.6m (25 ft.) of cable for standard and Wet-Tap sensors Chemically resistant materials Easy to replace rotor CE Approved Applications Pure Water Production Filtration systems Chemical Production Liquid Delivery Systems Pump Protection Scrubber Systems Water Monitoring Not suitable for gases

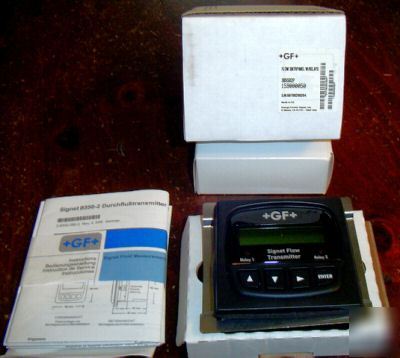

All Items Are Brand New And Have Never Been Used. Only out of box for these photo's.
All come complete with sealed instruction manuals
