New dwyer minihelic differential pressure gage 2-5210

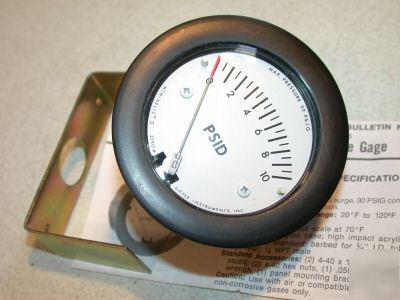

NEW DWYER MINIHELIC DIFFERENTIAL PRESSURE GAGE 2-5210
Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications the MinihelicR II gage offers the latest in design features for a dial type differential pressure gage. It is their most compact gage but is easy to read and can safely operate at total pressures up to 30 psig. The MinihelicR II is designed for panel mounting in a single 25.8" diameter hole. Standard pressure connections are barbed fittings for 3.16" I.D. tubing; optional 1.8" male NPT connections are also available. Over-pressure protection is built into the Minihelic IIR gage by means of a blow-out membrane molded in conjunction with the diaphragm. Accidental over-ranging up to the rated total pressure will not damage the gage. With removable lens and rear housing, the gage may be easily serviced at minimum cost.
The Minihelic® II gage is suitable for many of the same applications as the Magnehelic® gage where the greater accuracy, sensitivity, and higher and lower differential pressure ranges of the Magnehelic® gage are not required.
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Housing: Glass filled nylon; polycarbonate lens.
Accuracy: ±5% of full scale at 70°F (21.1°C).
Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Size: 2-1/16½ (52.39 mm) diameter dial face.
http:// /htdocs/pdffiles/cat/pressure/2-5000_cat.pdf
This unit is fully guaranteed with a cost of $60.
