Worchester pneumatic series 39 valve actuator # 1539
WORCHESTER PNEUMATIC SERIES 39 VALVE ACTUATOR # 1539

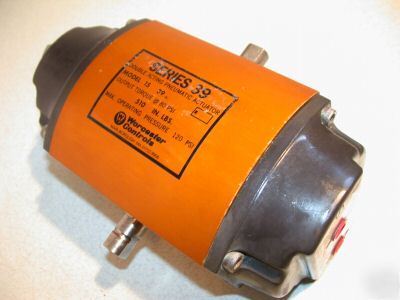

This is a Nice Worchester Controls Series 39 Pneumatic Actuator, Model 1539.
Series 39 Pneumatic Actuators High cycle pneumatic power for on-off or throttling control of rotary valves and dampers The Series 39 Pneumatic Actuator design is based on the opposed rack-and-pinion principle utilizing piston guide rods to guarantee part alignment. The fully supported guide rods minimize friction and wear between the pistons and the body bore.
Unique unrestricted air flow through guide rods gives fast operation speeds as standard
Output Torque - 80 PSI - 510 IN./LBS.
Max Operating Pressure - 120 PSI
One-piece steel pinion drive with full length, nickel coated rack/pinion tooth engagement for greater operational life
Balanced double rack-and-pinion eliminates side loads
ISO 5211 mounting pattern for interchangeability of mounting kits and greater mechanical strength
Long screws to allow complete release of spring energy for safe disassembly when required
Multi-spring concept provides variable torque/air pressure performance from the same actuator
Position indicator provides external indication of valve position
http:// /products/flowserve/worcester/WCABR1003.pdf
Thanks for looking! If you have any question on this item please call us at 1-(***)-826-3433 (9 - 5pm Eastern).
