Idec din rail power supply 24VDC PS5R-D24

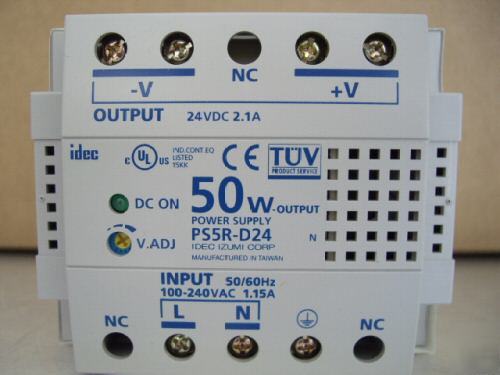

Idec DIN Rail Power Supply 24VDC PS5R-D24
* Product picture may vary, always go by P/N in listing
* Universal AC input (100 to 240VAC)
* DC compatible input (110 to 350V)
* Unique spring-up, IP20 fingersafe terminals (ideal for ring lug terminated wire)
* Fused input, auto-resetting output overcurrent protection
* Worldwide approvals: UL (UL508), c-UL, TUV, and CE (both LVD and EMC)
* Built in PFC on 75W, 120W, and 240W model; compliant with EN61000-3-2
75, 100, 120 & 240W models may be connected in parallel
IDEC's PS5R series, the new standard in switching power supply technology. Output power ranges from 7.5W to 240W allow your power supply to grow with your needs. With UL508 Listing, you may even be able to use a smaller power supply than you do currently. The outputs are available in either 5VDC, 12VDC or 24VDC, are adjustable +/- 10%, short circuit protected, and regulated to a 2% maximum ripple. Unique spring up terminals allow easy installation of ring lugs, and built in DIN rail clips require no additional brackets (all units are also direct surface mountable).
All models, except the 100W unit, have a universal input that accepts 100-240VAC (or 110-350VDC). The PS5R is truly a power supply designed with a world market in mind, as evidenced by the UL508 listing, c-UL Listing, TUV approval, and CE marking (EN60950, EN50081-2, and EN50082-2).
