> New opto 22 MP240D2 dc solid state relay 10
New opto 22 MP240D2 dc solid state relay 10

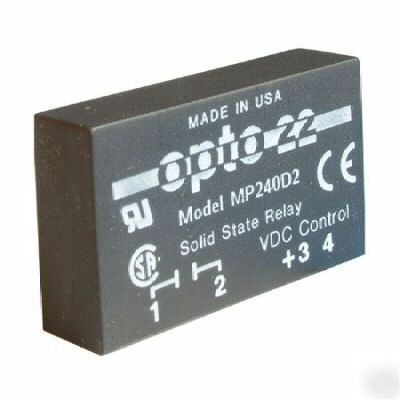

New Opto 22 MP240D2 DC Control Solid-State Relays Lot of 10
New Opto 22 MP240D2 Solid-State Relays SSRs
* Description: MP Model, 240 VAC, 2 Amp, DC Control Solid State Relay (SSR)
* Opto 22 offers a complete line of solid state relays (SSRs), from the rugged 120/240-volt AC Series to the small footprint MP Series, designed for mounting on printed circuit boards. All Opto 22 relays feature 4,000 volts of optical isolation and are UL and CSA recognized. The innovative use of room temperature liquid epoxy encapsulation, coupled with Opto 22’s unique heat-spreader technology, are key to mass-producing the world’s most reliable solid state relays.
* Every Opto 22 solid state relay is subjected to full load test and six times the rated current surge both before and after encapsulation. This double testing of every part before it leaves the factory means you can rely on Opto 22 solid state relays. All Opto 22 SSRs are guaranteed for life.
* 4,000 V optical isolation input to output
* Turn-on time: ½ cycle maximum
* Turn-off time: ½ cycle maximum
* Operating frequency: 25 to 65 Hz (operates at 400 Hz with six times off-state leakage)
* Coupling capacitance input to output: 8 pF maximum
* DV/DT Off-state: 200 volts per microsecond
* DV/DT commutating: snubbed for rated current at 0.5 power factor
* Checks will be held for 5 – 10 business days or until the check has cleared.
