Svda/3V25 solid state relay, dc control, 330 vac, 25 a

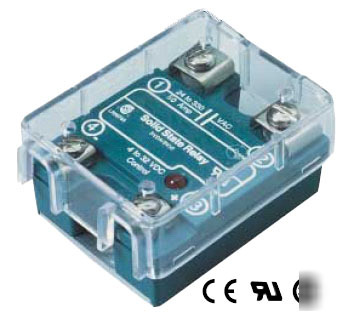

CONTINENTAL SVDA/3V25 SOLID STATE RELAY, DC CONTROL, 330 VAC, 25 AMP
* Clear safety cover included
* 800 volt blocking voltage
* Improved built-in snubber
* 100% tested at rated current
ON more than or equal to 4Vdc/5.4mA, 32Vdc/10mA max, current limited
OFF less than or equal to 1Vdc
Current rating: 25 Amps (with heatsink)
Voltage rating: 24V to 330V max.
Peak blocking voltage: 800V
* Turn on/off time: 1/2 cycle
* Operating temperature: 0°C to 40°C (up to 80°C with derating)
MANUFACTURER: CONTINENTAL / EUROTHERM
