Optical interference filter 656NB3 25MM hydrogen alpha
My Stores LogoCheck out my other items!
This filter is NOS from an OEM. The filter is used to isolate the output from a low pressure Hydrogen discharge at 656.3nm.
This filter has a very sharp single transmission peak with a HBW 3nm.The filter has about 70% transmission, and controls the light from the deep UV to >1200nm.
A good application would be to mount in front of a detector, to remove room light. Also can be used as a very high resolution filter for the output of this light source.

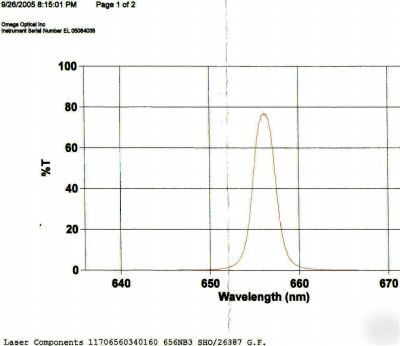

Specifications follow:CWL 656.3nm +-0.1nm, HBW 3.0nm nominal, Minimun Transmission 70%, Size 25mm +-.2mm. Transmission Curve provided.
For much more information on interference filters and their applications please visit my blog at www.bjomejag.squarespace.com/ . If you have ideas for additional topics to elaborate on, do leave a note.
