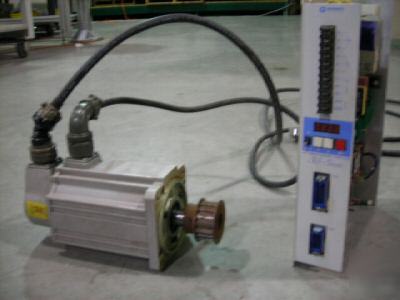

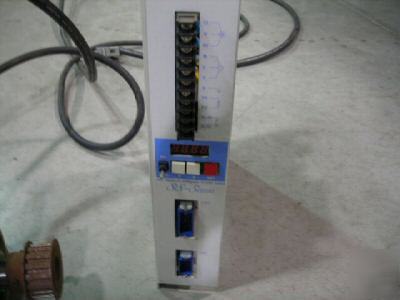

Indexer and single axis stepping motor snc-100A
Indexer and Single Axis Stepping Motor
The function of this indexer includes returning to home, index feed, scan feed and jog feed. The Accel/Decel profile can be set either sinusoidal or trapezoidal.
All the motor control data for operation can be set by the on-board digit-switches. These are two index channels with independent slew speed built in. By adding index expansion units such as SNC-101A or SNC-102A, the total of 16 index channels can be executed by single SNC-100A indexer.
SNC-101A and SNC-102A are available as options. One SNC-101A unit can add two additional index channels. Total of seven SNC-101A can be daisy chained to a SNC-100A to expand up to total of 16 index channels. SNC-102A allows the user provided switch matrix of 4 index channels per unit. Four SNC-102 A can be daisy chained to SNC-100A to expand tototal of 16 channels. Therefor, one 100-SNCA can be used with either SNC-101A or with SNC-102A to have total of 16 index channels.
No. of Controlled Axis: 1 Axis (can be started in sync with other axis)
Motor type: Stepping motor or digital servo motor
Control Command: PLC inputs or switch matrix inputs
Basic Functions: Index feed, Scan Feed, Jog Feed; Return to Machine Home or Imaginary Home, Start in Sync with Other Controllers, Instant and Deceleration stop.
Accel/Decel Profile: Trapezoidal, Triangular, Sinusoidal
Method of specifying the amount of movement: Incremental pulse number
Range of moving amount/index: 0 - 999999 pulses
Pulse counter capactiy: +16777215 pulses
Speed range: Low speed : 5 - 65535 pps
Speed setting segment: 100 steps
Accel/Decel range: Low speed: 5 -1500 pps/msec
High speed: 50 - 15000 pps/msec
Driver interface signals: 2 clock or clock/ direction outputs, Driver alarm input, Set up input for servo motor, Deviation counter overflow input for servo motor, Deviation counter reset output for servo motor
Machine sensor interface: Forward/reverse overrun limit sensor inputs, Near home sensor input, Home sensor input
Power source: 20- 30 VDC ( 24 VDC nominal) 0.5 A
Operational Temperature: 0 - 40 degree ( 32-104 F )
Operation Humidity: 10% - 80% ( no condensation)
Spec- .4 KW , 1500 RPM, 26 KGF-CM
