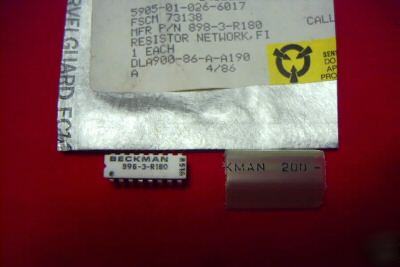

25 pc beckman resistor network bi 898-3-R180 16 pin
25 Pc Beckman Resistor Network BI 898-3-R180 16 Pin NIB
Standard Resistance Range, Ohms 1K to 500K
Standard Resistance Tolerance, at 25°C ±2%
Operating Temperature Range -40°C to +70°C
Temperature Coefficient of Resistance ±100ppm/°C
Maximum Operating Voltage 100Vdc or vPR
Insulation Resistance =10,000 Megohms
Ladder Network Accuracy 8 Bits: ±1/2LSB, -40°C to +70°C
10 Bits: ±1LSB, -40°C to +70°C
Lead Material Copper Alloy, 60/40 Tin-Lead Plating
Items paid by personal check are subject to a 7 working day hold.
Please e-mail us with any questions....
