Svaa/3V10 solid state relay, ac control, 330 vac, 10 a

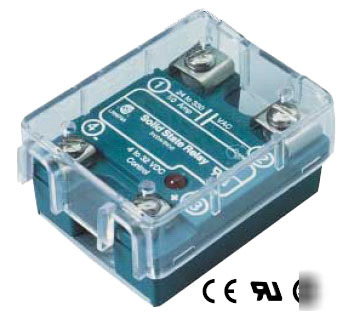

CONTINENTAL SVAA/3V10 SOLID STATE RELAY, AC CONTROL, 330 VAC, 10 AMP
* Clear safety cover included
* 800 volt blocking voltage
* Improved built-in snubber
* 100% tested at rated current
ON more than or equal to 100Vac min to 280Vac max, current limited
OFF less than or equal to 20Vac
Current rating: 10 Amps (with heatsink)
Voltage rating: 24V to 330V max.
Peak blocking voltage: 800V
* Turn on/off time: 1/2 cycle
* Operating temperature: 0°C to 40°C (up to 80°C with derating)
MANUFACTURER: CONTINENTAL / EUROTHERM
