2PC RS232 wireless pcb transceiver module 1MILE range

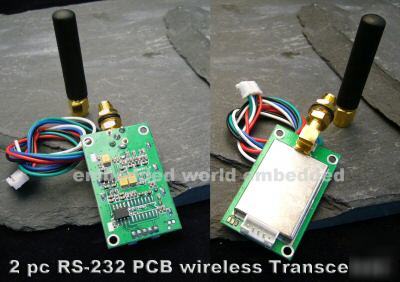

RS232 wireless PCB transceiver module 1mile range
This kits contain 2 wireless RS232 transceiver PCB module and with antanna and the connection cable.
Wireless RS-232 Transceiver ( part number: 862 module )
Distance: 300m ( BER=10=3@9600bps)
Channel ( preset channel pair) 8, user selectable by the software
Communication port baud rate: 1200/2400/4800/9600/19200 bps
Connector to provide serial port connection and power
Half duplex, single unit included receiver and transmitter.
Transparent data transfer, do not need any software coveration, use as regular serial port
Automatic error and noise filter
Low power computation and sleep mode, power 100mW,
power connect: <20mA, transmitted <100mA
Power supply: TTL level 2.7-5.5V, RS232 4.5-5.5V
Size: 44mm x 27mm x 10mm ( 13mm with antanna connector).
For warranty parts and service:
Will send a replacement unit within warranty period upon received the defective unitSpare parts are available upon providing parts number,
