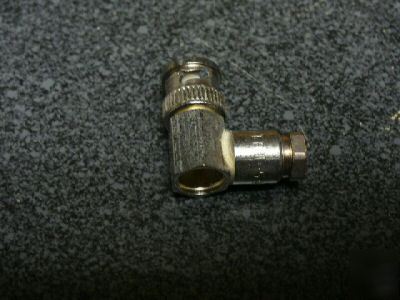

Connector,plug,electrical
NSN # -BODY STYLE - 3D ANGLE, SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 0.687 INCHES MINIMUM AND 0.751 INCHES MAXIMUM
OVERALL HEIGHT - 0.730 INCHES MINIMUM AND 0.770 INCHES MAXIMUM
OVERALL DIAMETER - 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET SLOT
CONNECTOR CABLE STRAIN RELIEF METHOD - COMPRESSION NUT
CABLE ENTRANCE DIAMETER - 0.137 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG - 120.0 AND 240.0
CONTACT POSITION ARRANGEMENT STYLE - ABBM BSM SINGLE MATING END
INSERT MATERIAL - PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-P-19468 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION - QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - WEATHERPROOF AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT AND HUMIDITY RESISTANT AND CORROSION RESISTANT
III OPERATING TEMP RATING - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL - GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY AND 0.100 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD AND BODY SURFACE SILVER 5935-00-328-1253
