New maxon dc motor re 75 + maxon tacho 250WATT 279054
* THE ITEM IS IN NEW CONDITION

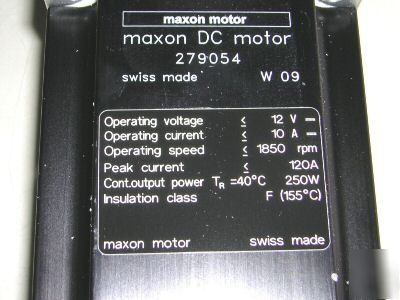

* RE 75, 75 mm, Graphite Brushes, 250 Watt
* INSULATION CLASS F (155 C)
Values at nominal voltage 118819
5. Nominal torque (max. continuous torque) mNm 551
6. Nominal current (max. continuous current) A 10.0
11. Terminal inductance mH 0.0402
12. Torque constant mNm/A 58.1
14. Speed / torque gradient rpm/mNm 0.331
15. Mechanical time constant ms 4.95

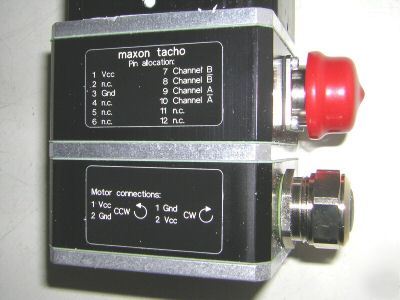

MOTOR CONNECTIONS - MAXON TACHO 143322
MORE INFORMATION ON THE MOTOR CAN BE FOUND HERE: http://test.maxonmotor.com/docsx/Download/catalog_2007/Pdf/07_084_e.pdf
MANUFACTURER WEBSITE: http:// /dc_motor.asp
For Questions, Quantity pricing, and Offers please Email to
