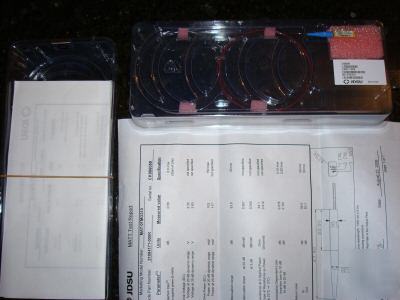

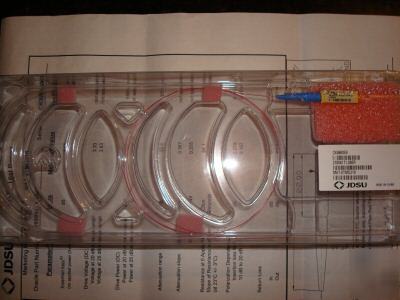

Jds uniphase mems variable optical attenuators
http:// /index.cfm?productid=3&pagepath=Products/Optical_Communications/Products/Passive_Components_Modules/Attenuators&id=5402
Attenuator, MEMS Voltage-Controlled
Attenuator, MEMS Voltage-Controlled more
Product Datasheet (PDF, 275KB)
The JDSU Agile Optical Components family includes modulators, switches, attenuators and tunable filters. These products provide the basis for spectrally efficient DWDM transmission utilizing dispersion tolerant modulation, channel monitoring, wavelength switching, remote power control and dynamic channel selection. They support a wide range of flexible functionalities at lower operational expenses for the Agile Optical Network. In addition, we have a complete line of tunable lasers assemblies and sub-assemblies in our Agile Transmission Module family.
JDSU microelectromechanical systems variable optical attenuators (MATT) focus on key network optical power management applications. JDSU offers MEMS attenuators in normally open and normally closed states. The MATT series attenuators fully comply with Telcordia 1221 reliability program. Key features include a small size, low wavelength dependent loss (WDL), and high reliability. JDSU provides three different package options: DIL MATT, TO MATT, and Micro MATT.
The MEMS attenuator design achieves highly repeatable optical attenuation over C and/or L bands through a thermally-actuated reflective vane that intercepts light. Applied power/voltage actuates the vane and translates in and out of the light beam. In a closed loop mode with constantly applied electrical
power/voltage, the MEMS attenuator achieves excellent performance over a wide temperature range and in a variety of environmental conditions. DIL MATTs include an internal temperature sensor which can be used to compensate the temperature dependent performance for accurate open loop operation.
* Low polarization dependence
* Insensitive to vibration and electrostatic discharge (ESD)
* Extremely low wavelength dependence over C and/or L bands
* Mulitiple devices easily packaged into common housing
* Available in both normally open and normally closed states
* Available in three different packages
* Power equalization in multi-channel, optically amplified networks
* Gain-tilt control in erbium doped fiber amplifiers (EDFAs)
* Power control into narrowband wavelength division multiplexers (WDMs) and configurable networks
* Receiver protection/switch during transmitter turn-ons
* Passed monitored MIL-STD 883 (GR-1221) conditions vibration test (insensitive to 20 g peak acceleration)
* Passed MIL-STD 883 (500 V) ESD test conditions
