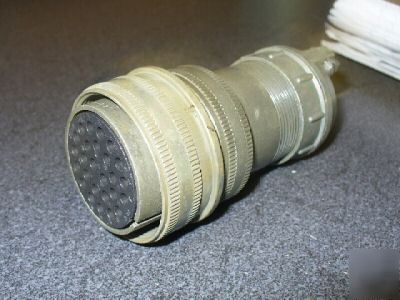

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.557 INCHES MAXIMUM
OVERALL DIAMETER - 1.760 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - NICKEL
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - CLAH 24-57 SINGLE MATING END
INSERT MATERIAL - RUBBER SILICONE CLASS Q SINGLE MATING END
INCLUDED CONTACT QUANTITY - 2 SINGLE MATING END 1ST CONTACT GROUPING, 55 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM CURRENT RATING IN AMPS - 35.0 SINGLE MATING END 1ST CONTACT GROUPING, 7.5 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE - CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION - BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION - CORROSION RESISTANT AND MOISTURE RESISTANT AND VIBRATION RESISTANT
III PRECIOUS MATERIAL AND WEIGHT - 0.057 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
