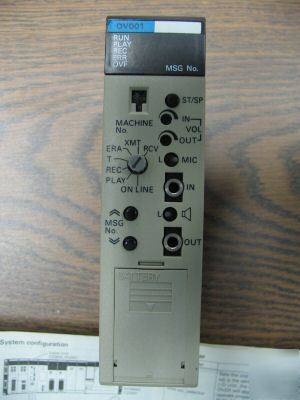

Omron plc voice module for C200H/hs/he/hg/hx, CS1
Voice Module for C200H/HS/HE/HG/HX, CS1 (CS1W-BCxx3 Backplane Required)
♦ Microphone jack enables live message
♦ Messages can be interrupted to start
♦ Messages can be recorded in phrase and
♦ Upload or download messages through the
RS-232C port on the front panel
· Voice synthesis method Adaptive Differential Pulse-Coded Modulation (ADPCM)
· Message recording time 32/48/64 seconds (switch selectable)
MIC IN Microphone g p input: unbalanced dynamic microphone (600 Ω)
LINE IN Tape input: Input impedance: 50 k Ω, unbalanced Maximum input voltage: 3.3 V
SPEAKER OUT Built-in amplifier output: 0.14 W (8 Ω speaker)
LINE OUT External amplifier output: 600 Ω unbalanced transformer output Maximum output voltage: 0.5 V rms (effective value)Both balanced and unbalanced external amplifiers can be connected.
· Built-in monitor speaker Diameter 27 mm, 0.1 W (8 Ω)
· Output frequency characteristics
32-second recordings: 100 Hz to 3.2 kHz
48/64-second recordings: 100 Hz to 2.2 kHz
· Lowpass filter function Cutoff frequency:
3.2 kHz for 32-second recordings, 2.2 kHz for 48/64-second recordings
· Message memory 128K bytes RAM (battery powered)
External communications RS-232C (Baud rate: 19,200/9,600/4,800/2,400 bps. XON/XOFF: yes/no, CTS/RTS: yes/no)
· Self-diagnosis function CPU watchdog timer, LOW battery voltage detection Battery life 5 years at 25°C (battery life is shorter for higher temperatures)
