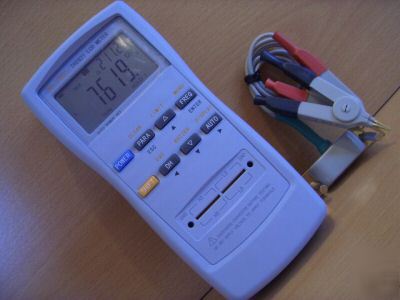

New professional handheld digital lcr / lcz meter
"Professional / High Precision Digital LCR Meter"
HIGH ACCURACY & RESOLUTION !!!
HIGH RELIABILITY & STABILITY!!!
HANDY DESIGN & EASY-TO-OPERATE !!!
. Wide Capacitance / Inductance / Resistance / D Factor / Q Factor Measuring Range :
- Capacitance : 0.1pF to 9,999uF ( 100Hz , 120Hz , 1Khz )
- Inductance : 0.1uH to 9,999H ( 100Hz , 120Hz , 1Khz )
- Resistance / Impedance : 0.0001 Ohm to 999.9M Ohms
- Dissipation factor ( D ) : 0.0001 to 9,999
- Quality Factor (Q ) : 0.0001 to 9,999
- Relative % : 0.0001% to 9,999 %
. Applicable for the following applications :
- Capacitor / Inductance characteristic / quality analysis;
- Selection of desired / Precise capacitor / Coil / Resistor ;
- Test Unknown capacitor / Coil / Resistor;
- Finding the "matched" capacitors / Coils / Resistor for circuit design
OPEN : Multi-frequency correction of open circuit;
SHORT : multi-frequency correction of short circuit;
Direct : direct measurement value ;
. Range Hold for large number of components to improve measuring rate
. Comparator Function : Built-in 4 bins comparator : NG, P1,P2 and P3
. Both Parallel and series equivalent circuit modes can be obtained
. Data Hold : to freeze the current display value
. Alarm Mode : NG, P1,P2,P3 and off modes can be selected
. Parameters : L-Q , C-D , R-Q and Z-Q ;
. Test Frequency : 100Hz , 120Hz, 1KHz;
. Display : 5 Digits display for both primary and secondary parameters ;
- Capacitance : 0.1pF to 9,999uF ( 100Hz , 120Hz , 1Khz )
- Inductance : 0.1uH to 9,999H ( 100Hz , 120Hz , 1Khz )
- Resistance / Impedance : 0.0001 Ohm to 999.9M Ohms
- Dissipation factor ( D ) : 0.0001 to 9,999
- Quality Factor (Q ) : 0.0001 to 9,999
- Relative % Display : 0.0001% to 9,999 %
. Test Level ( Range auto and open circuit )
120Hz, 1Khz ( 0.3 V rms ( +/- 15% )
. Ranging Mode : Auto & Hold ;
. Equivalent Circuit : Parallel and Series ;
. Display : Direct , Absolute value, relative %;
. Correction : Open and short zeroing;
. Rate : Approx. 3 measurment / sec;
. Comparator : 4 Bins with BG, P1,P2,P3;
. Alarm Mode : NG,P1,P2,P3 and off;
. Power supply : 9V or DC12 adaptor ( included );
. Auto Power off : Approx. 5 mins ;
. Dimensions : 200 (L) X 95 (W) X 40 (D) mm;
. Accessories : 4 Terminal Kelvin test clip leads / 220V or 110V AC to 12V DC power adaptor / Operation Manual
PLEASE CHECK OTHER 10KHZ HANDHELD LCR METER WITH MEASURING RANGE DOWN TO 0.01uH AND 0.01pF ON SALES TOO.
QUANTITY DISCOUNT AVAILABLE !!!
If the item damaged upon received, please inform immediately with picture by e-mail within 5 days. After the investigation, we decide to the replacement.
- We regret not accept Personal Check; US local Postal Order.
Please Feel Free to ask if you have any inquiry.
