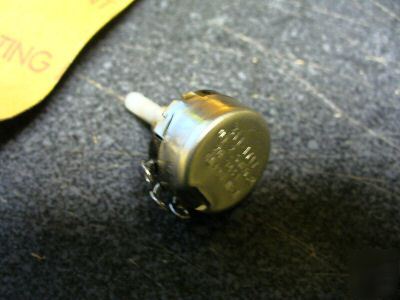

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 2.500 MEGOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -20.0 TO 20.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - TK CLAROSTAT
MAXIMUM STARTING TORQUE - 6.00 INCH-OUNCES
MAXIMUM RUNNING TORQUE - 6.00 INCH-OUNCES
RESISTANCE TEMP CHARACTERISTIC RANGE PER SECTION IN PERCENT - 0.0 TO 9.0 -55 DEG CELSIUS SINGLE SECTION AND 0.0 TO 8.0 -40 DEG CELSIUS SINGLE SECTION AND 0.0 TO 2.5 0 DEG CELSIUS SINGLE SECTION AND -3.5 TO 3.5 85 DEG CELSIUS SINGLE SECTION AND -5.5 TO 5.5 105 DEG CELSIUS SINGLE SECTION AND -7.0 TO 7.0 120 DEG CELSIUS SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 1.0 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 70.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 120.0 SINGLE SECTION
BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED
BODY DIAMETER - 0.625 INCHES NOMINAL
BODY LENGTH - 0.391 INCHES NOMINAL
MOUNTING BUSHING LENGTH - 0.250 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.125 INCHES NOMINAL
SHAFT LENGTH - 0.625 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 300.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - STOPS
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 270.0 NOMINAL
NONTURN DEVICE LOCATION - AT 9 OCLOCK
NONTURN DEVICE RADIUS - 0.531 INCHES NOMINAL
MOUNTING METHOD - STANDARD BUSHING
SCREW THREAD SERIES DESIGNATOR - UNEF
SCREW THREAD DIAMETER - 0.250 INCHES NOMINAL
SCREW THREAD QUANTITY PER INCH - 32.0
TERMINAL TYPE AND QUANTITY - 3 TAB, SOLDER LUG
TERMINAL LOCATION - RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 1.016 INCHES NOMINAL
III OVERALL DIAMETER - 0.874 INCHES NOMINAL
