LMH7720 hi speed comparator lvds output 600PS trise (2)
High Speed Comparator with LVDS output
600 ps Rise Time, 2.6 ns Prop. Delay
The LMH7220 is a high speed, low power comparator with an operating supply voltage range of 2.7V to 12V. The LMH7220 has a differential, LVDS output, driving 325 mV into a 100
? symmetrical transmission line. The LMH7220 has a 2.9 ns propagation delay and 0.6 ns rise and fall times while the supply current is only 6.8 mA at 5V (load current excluded).
The LMH7220 inputs have a voltage range that extends 200 mV below ground, allowing ground sensing applications. The LMH7220 is available in the 6-Pin TSOT package. ThIs package is ideal where space is a critical item.

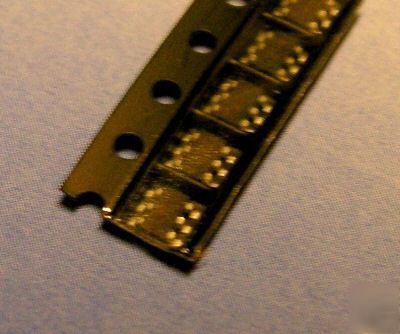

Package is 6 pin surface mount with 1 mm pitch
US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option.
2-nd item: S&H 75% less than first (or 25% of first)
items 3-5: S&H 80% less than first (or 20% of first)
items 6-10: S&H 90% less than first (or 10% of first)
