Boston gear / fincor ACX2030 3HP ac motor control nos

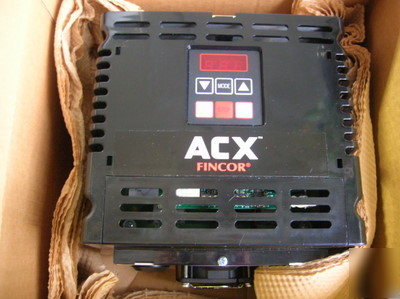

Boston Gear / Fincor Fincor ACX2030 3HP AC Motor Control
This is a new micro-controller in the factory box
Money Back Guarantee against DOA
Made By Panasonic for Boston Gear / Fincor
The ACX is a general purpose , low cost, AC micro-controller which provides adjustable speed control of conventional AC motors in applications exhibiting a variety of load characteristics. The controler converts the fixed frequency and voltage of the AC line power source to a sine coded pulse width modulated adjustable voltage and frequency output. The power section utilizes Insulated-Gate Bipolar Transistors (IGBT's) operating at an adjustable carrier frequency providing high starting torque and cool motor operation.
Amps - 1 Phase input- 14/12.7 - 3 Phase input- 14.2/12.8
1 Phase output- 5.7/5.2 - 3 Phase output- 10.6/9.6
Phase - input 1 & 3 / output 3
Hertz - input 50-60 / output 0 - 400
