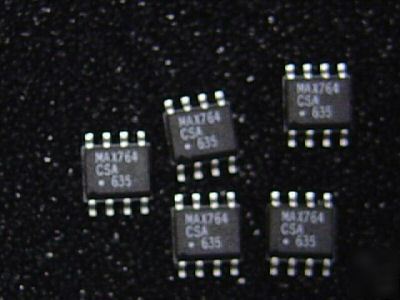

> Qty 5 MAX764CSA -5 volt inverting switching regulator
Qty 5 MAX764CSA -5 volt inverting switching regulator
-5 Volt High-Efficiency, Low-IQ DC-DC Inverters
See: http:// /quick_view2.cfm/qv_pk/1171 For Datasheet
The MAX764/MAX765/MAX766 inverting switching regulators are highly efficient over a wide range of load currents, delivering up to 1.5W. A unique, current-limited, pulse-frequency-modulated (PFM) control scheme combines the benefits of traditional PFM converters with the benefits of pulse-width-modulated (PWM) converters. Like PWM converters, the MAX764/MAX765/MAX766 are highly efficient at heavy loads. Yet because they are PFM devices, they use less than 120µA of supply current (vs. 2mA to 10mA for a PWM device).
The input voltage range is 3V to 16V. The output voltage is preset at -5V (MAX764), -12V (MAX765), or -15V (MAX766); it can also be adjusted from -1V to -16V using two external resistors (Dual Modeâ„¢). The maximum operating VIN - VOUT differential is 20V.
* High Efficiency for a Wide Range of Load Currents
* 3V to 16V Input Voltage Range
* -5V (MAX764), -12V (MAX765), -15V (MAX766), or Adjustable Output from -1V to -16V
* Current-Limited PFM Control Scheme
* 300kHz Switching Frequency
* Internal, P-Channel Power MOSFET
Great for projects and Experiments
