Agilent hp E4406A /202 , vsa transmitter tester 4 ghz

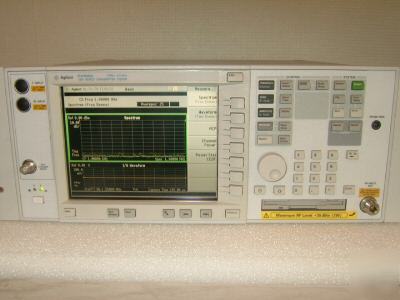

Agilent HP E4406A 4 GHz, VSA Transmitter Tester
Our price is without tax ( Nos prix ne comprennent pas la TVA 19,6%).
Les particuliers qui résident en France et dans la CEE doivent ajouter la TVA 19,6% sur le prix
The E4406A VSA transmitter tester is a full-featured vector signal analyzer suited for base station and mobile handset manufacturing, with additional applications for design and development of wireless equipment. The E4406A VSA offers various power measurements for multiple 2G, 2.5G, 3G, and 3.5G wireless communications formats with powerful one-button standard-based modulation analysis. The affordable price makes it well suited for volume production. Extensive one-button measurement personalities, and optional baseband IQ input provide unparalleled convenience for research and development applications.
The E4406A VSA is easy to use regardless of your level of expertise. Measurements are accessible at the touch of a button and are easily configured with the simple, straightforward menu structure. The VSA comes standard with the following measurement capabilities: spectrum (frequency domain) analysis, waveform (time domain) analysis, adjacent channel power (ACP), complimentary cumulative distribution function (CCDF), channel power, occupied bandwidth, and link capability to the 89601A vector signal analysis software. Agilent continues to maintain the E4406A features by providing free enhancements and upgrades to firmware and measurement personalities at free of charge.
* Frequency range: 7 MHz to 4 GHz (RF input) and 5 Hz to 10 MHz
* Absolute amplitude accuracy at 1 GHz: ±0.6 dB
* Displayed average noise level at 1GHz: -136 dBc/Hz
* Dynamic range (3rd order) at 1 GHz: 102 dB
* Measurement capabilities:
* spectrum (frequency domain) analysis
* waveform (time domain) analysis
* adjacent channel power (ACP)
* complimentary cumulative distribution function (CCDF)
* occupied bandwidth
* link capability to the 89601A vector signal analysis software
For others country please contact us before
Information about our company:
Adress : ZAC DES RADARS - 7 RUE JJ ROUSSEAU
§ All the used units we are selling have been checked and work perfectly except the products mentioned “failedâ€.
§ Units are coming without their accessories and without manuals except if mentioned in the description
